Using Home Music Power Amplifier Circuit Diagram

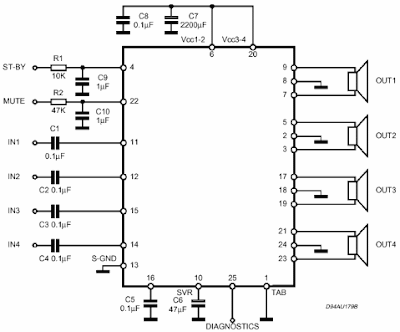

This is the simple Using Home Music Power Amplifier Circuit Diagram. This Power Amplifier built on a chip TDA7386. a sample of a simple but at the same time having a good performance four-channel amplifier. The main purpose - to set in the car, a home music set or computer..


Using Home Music Power Amplifier Circuit Diagram

Using Home Music Power Amplifier Circuit Diagram


Supply voltage: 6 ... 18
The range of playback. Frequency Response: 20-25000 Hz
Harmonic distortion: 1% (max 10%)
Load Impedance:> 2 ohms
Input impedance: 100 ohms
Current in mute / stand-by: 100 mA
Dimensions of PCB: 55x40 m
